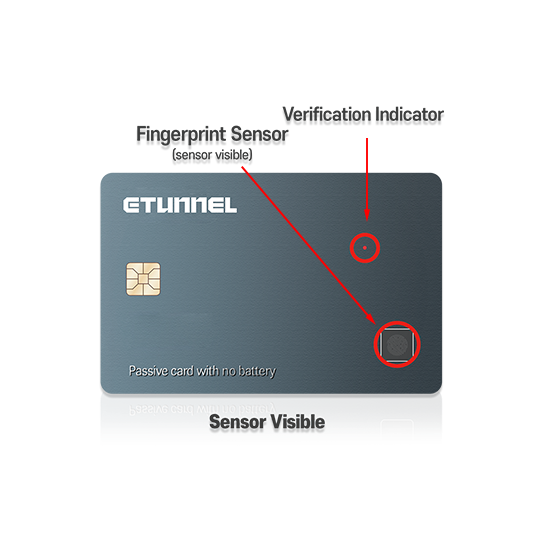

ETUNNEL-SC-100P

A smart authentication card equipped with fingerprint recognition functionality
for identity verification and security.

Core Elements of Security Technology

The trusted technology developed by ETUNNEL sets a new global standard in security.

High security with fingerprint
storage on the card

Easy identity verification
without a password

Prevention of tampering
and theft

Features

Enhance convenience and reliability with
the ETUNNEL-SC-100P.

Purpose

Fingerprint Smart ID Card safely stores fingerprint information on the card and verifies identity through fingerprint recognition.

Reliability

It enables simple and accurate authentication using only the fingerprint, without the need for a password, while fundamentally preventing tampering and theft, offering high security.

Future Scalability

This next-generation security authentication solution can be applied in various fields, including finance, access control, and electronic payments.

Key Features

Product Specifications

Power Source · Energy Harvesting from RFID Field
Cycle Life · RF IC Read/Write 100,000 times
Dimensions · ISO 7816-1
· type ID-1
· 85.6(W)*54(H)*0.74±0.04D㎜
Sensing Area · 4×4㎜
· 56×56 pixel
Sensor Pixel Size · 70×70 µm
Special Resolution · 363 DPI
ADC Pixel Resolution · 14 Bits Gray Scale
FRR/FAR · 2%
· 0.01%
ESD · +/- 8kV(Contact mode)
Operating Temperature · 0℃~45℃
Extended Humidity · 65~90% RH
Contactless RFID chips · HID iClass
· i-code SLI
· Tag-it
· Mifare Classic
· Bk
· DesFire EV1
· FeliCa
Operation Method · When the registered fingerprint matches,the green LED lights up, and access is granted.
· When it does not match, the red LED lights up, and access is denied.
