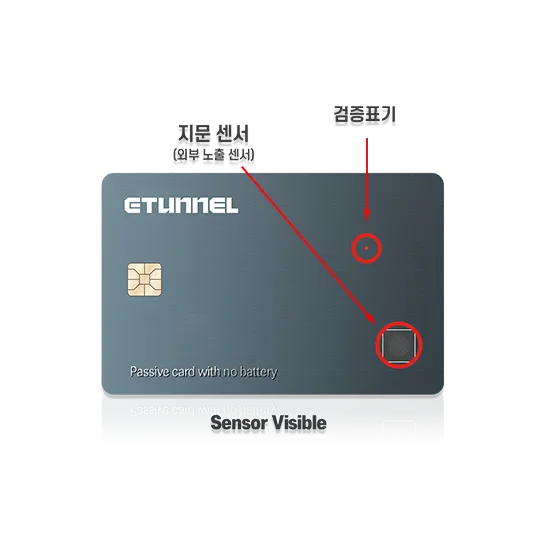

ETUNNEL-SC-100P
A smart authentication card equipped with fingerprint recognition functionality for identity verification and security.
Core Elements of Security Technology
The trusted technology developed by ETUNNEL sets a new global standard in security.
High security with fingerprint
storage on the card
Easy identity verification
without a password
Prevention of tampering
and theft
Features
Enhance convenience and reliability with the ETUNNEL-SC-100P.
Purpose
Fingerprint Smart ID Card safely stores fingerprint information on the card and verifies identity through fingerprint recognition.
Reliability
It enables simple and accurate authentication using only the fingerprint, without the need for a password, while fundamentally preventing tampering and theft, offering high security.
Future Scalability
This next-generation secure authentication solution can be applied in various fields, including finance, access control, and electronic payments.
Product Specifications
| Power Source | · Energy Harvesting from RFID Field |
|---|---|
| Cycle Life | · RF IC Read/Write 100,000 times |
| Dimensions | · ISO 7816-1 · type ID-1 · 85.6(W) × 54(H) × 0.74±0.04(D) mm |
| Sensing Area | · 4 × 4 mm · 56 × 56 pixel |
| Sensor Pixel Size | · 70 × 70 µm |
| Special Resolution | · 363 DPI |
| ADC Pixel Resolution | · 14 Bits Gray Scale |
| FRR / FAR | · FRR: 2% · FAR: 0.01% |
| ESD | · +/- 8kV (Contact Mode) |
| Operating Temperature | · 0°C ~ 45°C |
| Extended Humidity | · 65% ~ 90% RH |
| Contactless RFID chips | · HID iClass · i-code SLI · Tag-it · Mifare Classic · Bk · DesFire EV1 · FeliCa |
| Operation Method | · If matched with the registered fingerprint, the Green LED lights up and access is allowed. · If not matched, the Red LED lights up and access is denied. |
